Arizona State University

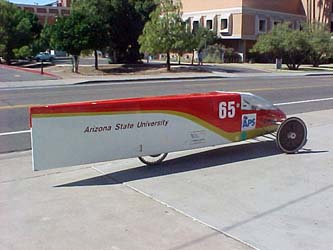

"Desert Ray" Solar Vehicle
SOLD! ($2,500 on 11/15/01)

This vehicle was designed and constructed for competitive solar vehicle racing by the students and faculty of Arizona State University. Since focus was shifted to newer vehicle concepts, the Desert Ray is without a photovoltaic array, solar trackers, or batteries. The vehicle, however, is in perfect working order. The highly-efficient electric drive performs well, and makes the vehicle a very capable battery-driven electric vehicle, with the availability of becoming a solar vehicle yet again with a few additions.

Specifications
Length 204 in. (518 cm.)
Width 78 in. (198 cm.)
Height 40 in.(102 cm.)
Wheelbase 90 in.(229 cm.)
Curb Weight (unknown)
Power to Weight ratio 0.038 hp/lb (0.018 kW/kg)
Rolling Resistance Coefficient 0.005
Aerodynamic Drag Coefficient (Cd) 0.18
Motor
 Uniq Mobility DR127SW DC motor:
  • 20 hp
  • 8 kW
  • 8000 N-m (13.2 ft-lb) torque
  • 8000 rpm
  • 95% rated efficiency
    		•
    Controller Uniq Mobility CR10-100 controller:
  • 96 V
  • 100 A
  • 95% rated efficiency
    		•
    Batteries (none)
    Solar Array (none)
    Chassis 6061 T6 aluminum
    Body
  • outer: carbon graphite (1 ply), kevlar (2 plies)
  • inside (rear wedge only): styrofoam
    		•
    Wheels custom (Proformance Wheels by Will)
    Tires
  • front: 26" x 1 1/4
  • rear: 26" x 1 3/4
    		•
